The Toyota Corolla Cross is a compact crossover SUV positioned between the smaller C-HR and the larger RAV4. Built on Toyota’s global TNGA-C platform, it combines the practicality of a family hatchback with the higher ride height and visibility of an SUV.
1. Key Technical Specifications
| Feature | Specification Details |
| Body Type | 5-Door Compact Crossover SUV |
| Platform | TNGA-C (Toyota New Global Architecture) |
| Seating Capacity | 5 Passengers |
| Drive Layout | Front-Wheel Drive (FWD) / All-Wheel Drive (AWD) |
| Transmission | Direct Shift-CVT / e-CVT (Hybrid models) |
| Luggage Capacity | ~407 Liters to 487 Liters (rear seats upright) |
2. Dimensions & Weight
Overall Length: 4,460 mm
Overall Width: 1,825 mm
Overall Height: 1,620 mm
Wheelbase: 2,640 mm
Ground Clearance: ~161 mm – 203 mm (varies by trim & region)
Minimum Turning Radius: 5.2 meters
3. Engine Options & Performance
A. 1.8-Liter Petrol (2ZR-FE / 2ZR-FAE)
Engine Type: 4-Cylinder Inline, 16-Valve DOHC with Dual VVT-i
Displacement: 1,798 cc
Max Output: ~138 HP (103 kW) @ 6,000 RPM
Max Torque: ~172 Nm @ 4,000 RPM
B. 1.8-Liter Hybrid Electric (2ZR-FXE)
Engine Type: 4-Cylinder Atkinson-Cycle + Electric Motor
Total System Power: ~122 HP to 138 HP (5th Gen Hybrid)
Fuel Efficiency: ~20–23 km/L (Highly fuel-efficient urban drive)
C. 2.0-Liter Dynamic Force (M20A-FKS / M20A-FXS Hybrid)
Engine Type: 2.0-Liter Inline 4-Cylinder
Max Output: 169 HP (Gasoline) / 196 HP (5th Gen Hybrid AWD)
4. Exterior & Interior Features
Exterior Highlights
Lighting: Bi-Beam LED Headlamps with integrated LED Daytime Running Lights (DRL).
Grille & Styling: Wide trapezoidal front grille with rugged lower body cladding.
Wheels: 17-inch alloy or 18-inch dual-tone alloy wheels.
Convenience: Power Back Door with Kick Sensor (Hands-free tailgate access).

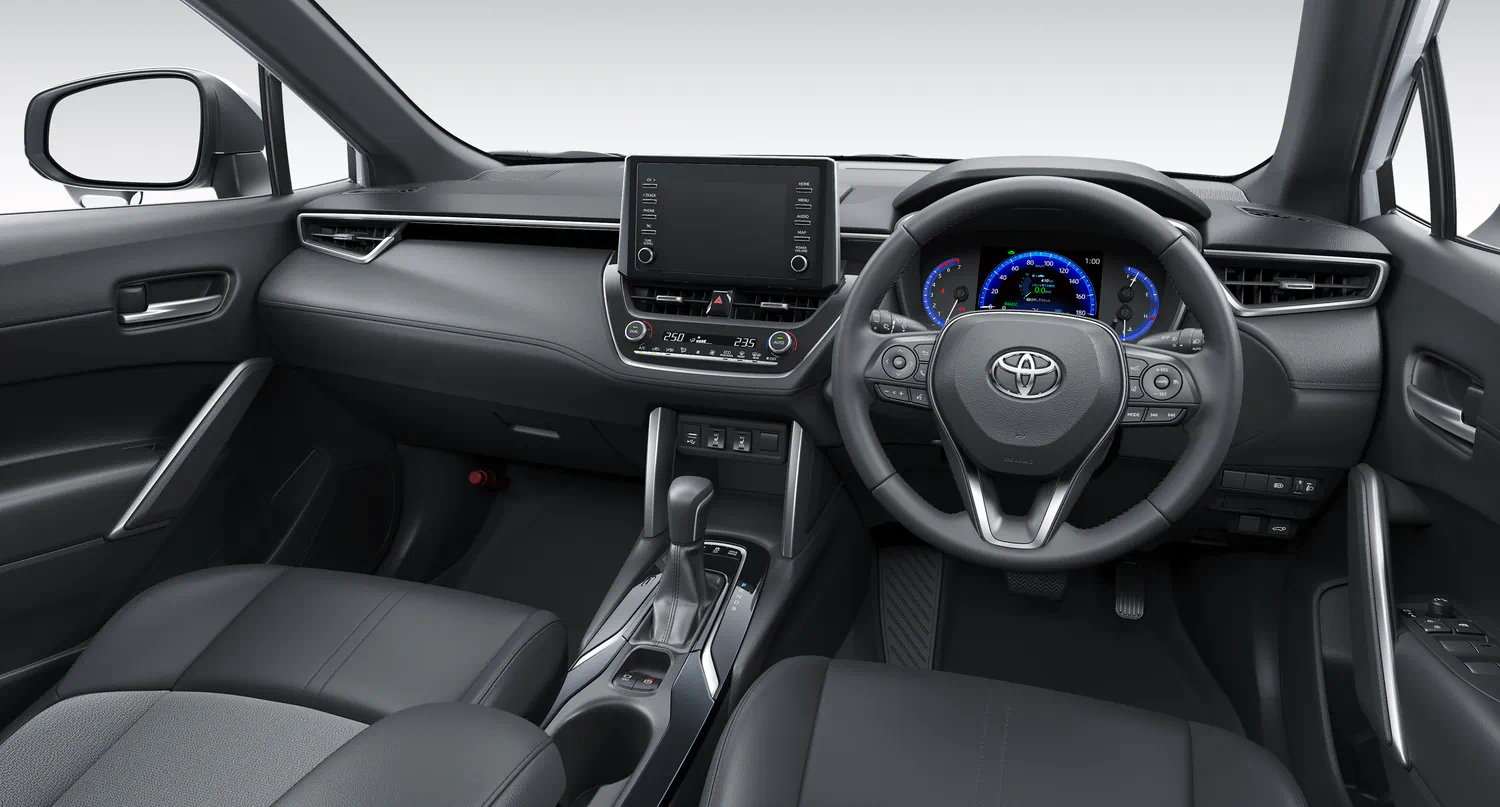

Interior Highlights
Infotainment: 8.0-inch or 10.5-inch Touchscreen with Apple CarPlay & Android Auto.
Instrument Cluster: 7.0-inch Digital Multi-Information Display (MID) or full 12.3-inch digital cockpit.
Climate Control: Automatic Dual-Zone Climate Control with Rear Air Vents.

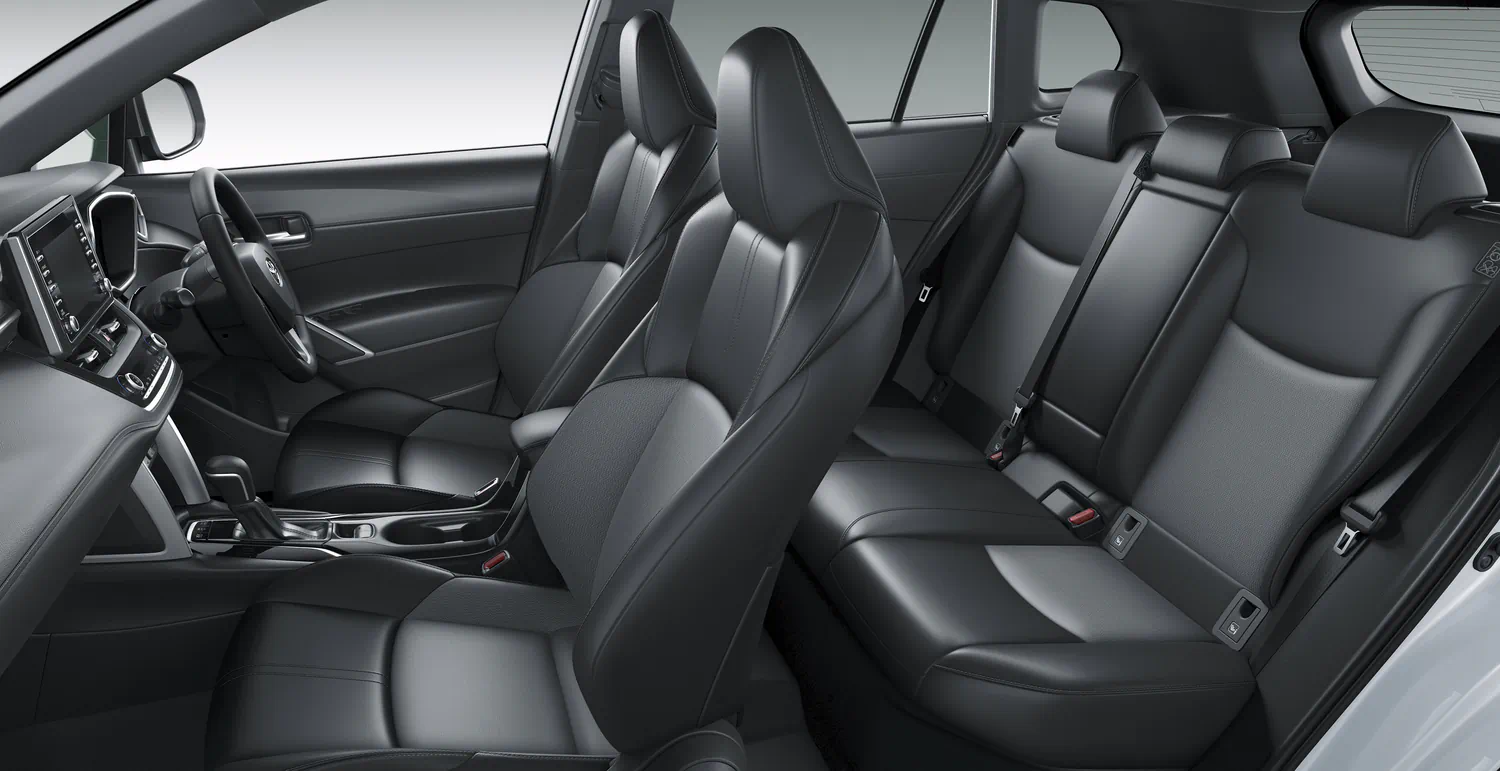

Comfort: Synthetic leather seats, power-adjustable driver seat, and ambient cabin lighting.
5. Safety & Security (Toyota Safety Sense)
Pre-Collision System (PCS): Forward collision mitigation with vehicle and pedestrian detection.
Dynamic Radar Cruise Control (DRCC): Adaptive cruise control with full-speed range tracking.
Lane Departure Alert (LDA) & Lane Tracing Assist (LTA): Keeps the vehicle centered in its lane.
Automatic High Beam (AHB): Switches headlight beams automatically based on traffic conditions.
Additional Safety Features:
7 SRS Airbags (Front, Side, Curtain, Driver Knee)
Blind Spot Monitor (BSM) & Rear Cross Traffic Alert (RCTA)
360-Degree Panoramic View Monitor (PVM)
Vehicle Stability Control (VSC) & Hill-start Assist Control (HAC)
